Mallets, Mauls, and Dummys

Masonry: An Elementary Text-book..., 1914
Mallets, mauls, dummys, and similar hammers are the only masonry tools that are also used for other crafts. These short-handled hammers are used to strike chisels or other steel tools in soft stone cutting, stone carving and letter cutting, woodworking, wood carving, leather working, and jewelry making.

The traditional mallet has a wood head, the maul has a leather head, and the dummy's head is brass, copper, bronze, zinc, pewter, steel, cast iron, or wrought iron. The modern dummy can also be nylon or urethane. Handles are commonly hickory in the US, and elm or beech in the UK and Ireland.

The heads are round, usually an inverted truncated cone, which has several advantages over the standard one- or two-faced hammer or mallet. The user does not have to keep the hammer head aligned with the chisel and can keep his/her eyes on the work. A round wood head reduces the risk of the wood splitting, proves a wide wearing surface, and gives extra weight. A round metal head will not mushroom, the force of the  blow being distributed across a wider area.
Wood mallet, USA

Metal dummy from Pembrokeshire, UK
Masons' Mallet .—These tools are very important to the mason. They are usually made of beech or hickory. Pearwood, if well selected, is also excellent for this purpose. The beat of the mallet, or that portion coming into contact with the chisel head, is on the end grain of the wood. It is a speculation, when buying a mallet, as to whether it will prove a success or not. When a craftsman secures a good mallet he prizes it beyond all the other items in his tool kit. They are used in sizes according to the material or the detail to be cut, and in conjunction with the mallet-headed tools. From Modern Practical Masonry, by E.G. Warland, 1929.

Cast iron dummy by Tiranti of London
Mauls and dummys are traditional designs with a long history, but beginning in the early 19th century, inventors began patenting leather mallets or mauls. These use rings or discs of leather or cardboard, compressed by threaded iron or steel rings on a threaded steel shaft.

An early patent that was manufactured was by Allen P. Partridge (1806-1872) of Medway, Massachusetts, with US Patent 46,972, issued 21 March 1865, and US Patent 127,363, issued 28 May 1872. With his son David Allen Partridge (1833-unk.), he operated Allen Partridge & Son 1870-71, and David also worked as agent (salesman) and treasurer for West Medway Mallet Co. from 1875 to 1886. The 1865 patent has a rod which extends through a hollow wood handle, with a large screw slot at the top. The 1872 patent has a large hex nut with patent information at the base of the head, and the handle is solid wood and extends through the head. Medway had shoe manufacturing and marble and granite finishing businesses, and it's clear from Partridge's 1865 application that his mallet was to be used in those trades. Some West Medway mallets also say NEA & N Co. or UA & N Co., in addition to W. Medway at the base of the head.

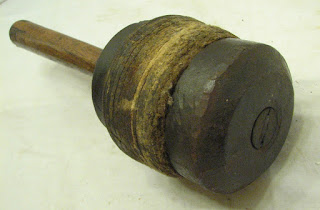

West Medway No. 4 maul, US Patent 46,972
Partridge maul, US Patent 127,363
George B. Goddard of Brockton, Massachusetts obtained US Patents 202,165, 211,149, 414,808, 662,691, and 763,553 for leather mallets and a mallet handle. Goddard patent mallets were manufactured by Brockton Mallet and Machine Co. An 1897 article in Iron Age said, "The company are manufacturers of and wholesale and retail dealers in all kinds of Mallets, Mauls, Hammers, etc., being exclusive makers of Goddard's patent Raw Hide Mallet, Leather Covered Chisel and Bicycle Handle, and Goddard's Raw Hide Pinking Roll."

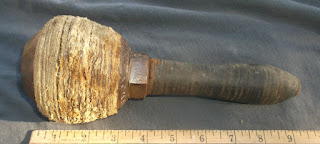

Goddard maul, US Patent 662,691
New leather mauls are available in the US from C.S. Osborne and Wirsing.

The Complete Book of Trades, 1842
Don Dougan has additional information about the long history and uses of these tools, from a stone carver's perspective.

Tuesday, January 12, 2016

Video of Making Forged Trowels at Factory in Spain

This is the only video I have found of trowels being made. The Spanish title is:
Cómo se hace las paletas usadas en construcción
YouTube
YouTube screen grab

Saturday, January 9, 2016

Rocker or Western Style Groovers

The conventional concrete groover has the handle on the top of the tool, attached with 2 posts. The rocker groover has a curved shape with the handle projecting from the rear of the tool. Old catalogs did not use the name "rocker groover", and called them jointers or groovers. Rocker groovers are narrower than conventional groovers. They may also be called Western style, depending on the manufacturer, the time period, and area of the country where they are used.

Rocker groovers have been made from cast iron, bronze, brass, aluminum, and possibly zinc. The handles were either wood or cast as one piece with the tool. Like other cement tools, some were identified with a cast number and a pasted-on label which is long gone, leaving us to wonder who the maker was.

F.H. Crafts No. 3D bronze groover

Smith & Holtum No. 027 cast iron groover
Smith & Holtum No. 27 catalog illustration
